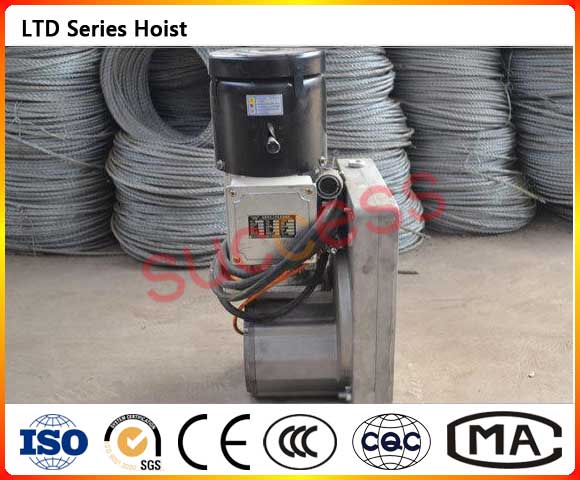

LTD Series Hoist for Suspended Platform Systems
Voltage and frequency are available upon request
Features and Benefits
1.The robust and strong die-cast aluminum casing with low dead weight
2.Gearing and drive sheave are fabricated from hardened steel.
3.Motor and connection box protection class IP55.
4.Hoist motor is fitted with a thermal overload protection device.
5.Standardized components ensures easy access to all wearing parts.
Advantages:
1.Every spare part is marked by the laser for the sales service.
2.The bad wire rope can work through the new type hoist normally.
3. We can manufacture various specifications gondola and spare parts (ZLP250,ZLP500,ZLP630,ZLP800 & ZLP1000) and special temporary suspended platform according to customers′ requirements.
| Model | Lifting Speed | Rated lifting Force | Motor Power | Diameter Of Wire Rope | Self Weight |
| LTD3.0 | 9.0m/min | 3.0KN | 0.7KW | Φ8.3mm | 35KG |
| LTD5.0 | 9.3m/min | 5.0KN | 1.5KW | Φ8.3mm | 48KG |
| LTD6.3 | 9.3m/min | 6.3KN | 1.5KW | Φ8.3mm | 50KG |
| LTD8 | 8.3m/min | 8.0KN | 1.8KW | Φ8.6mm | 52KG |
| LTD10 | 8.2m/min | 10KN | 2.2KW | Φ8.6mm | 80KG |
LTD Series Hoist for Suspended Platform Systems Selection Notes
LTD Series Hoist for Suspended Platform Systems is listed for buyers who need reliable lifting or access equipment for construction, facade work, maintenance or replacement service. Before confirming an order, match the product with the actual machine model, site height, rated load, power supply and installation conditions.
For related options, browse our suspended platform accessories or contact the technical team with drawings, photos, nameplate information and working conditions.
